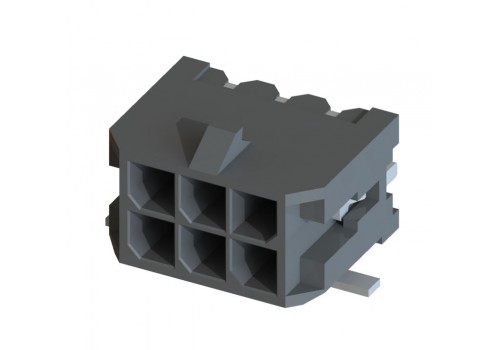

Power WTB product series is supporting the ion range of current rating of high power from 5A to 50A per pin for power system application, available in multiple circuit sizes and cable lengths, either dual or single row dispatch, pitch ion by 3.0, 4.2, 6.0 and 8.0mm, with optional mechanism configuration to secure product performance.
Consumer & Home Appliance, Server, Storage, Switch, Networking, Datacenter & Automotive Area, such as Infotainment system
| P-TWO P/N | Pitch | Type | Row/Key | R/A, V/T | Solder Tail | Pin | Plating | Packing | Halogen | Current Rating | Temp |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 190001-XX021-30 | 3.0mm | Board conn. | Dual | R/A | SMT | 2~24pin | Matt Tin | Carrier | HF | 5A | -40℃~+105℃ |
