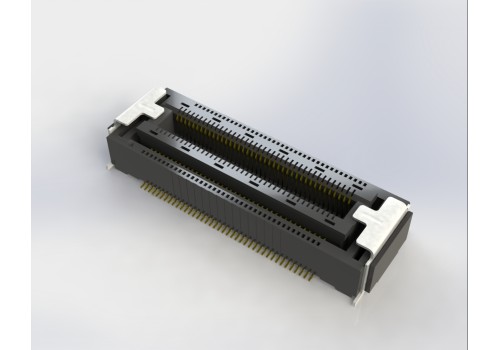

0.5mm pitch Floating Type Board-to-Board

P-TWO's 150035/36/55/56/61 series are 0.5mm pitch floating type Board-to-Board connector system consisting of plug and receptacle with two rows contact. This connector is designed for applications that required for high density and high reliability interconnect with high pin count and surface mount termination, such as infotainment in automobiles and OBC in EV and PLC module in I&I. P-TWO offers Vertical type, which total mating height up to 20mm with multiple position. A unique design for floating range of +/-0.5mm in X, Y and Z direction, which make it resistant to vibration.

  1. Home
  2. Product
  3. Floating Board to Board
  4. 0.5mm pitch Floating Type Board-to-Board

Features

1. Floating range of +/-0.5mm in X, Y, Z-direction
2. Capable of transferring data up to 5Gbps
3. Multiple mating height from 6mm ~ 20mm
4. Fine pitch design at 0.5mm with floating feature
5. Product with Cap and packed by Tape and Reel
6. UL 94V-0 flammability rated high temperature housing material
7. RoHS compliant and Lead-Free

Benefit

1. Tolerated misalignment during SMT process or mating, and also improves
2. overall contact reliability during vibration
3. Supports most of automotive protocol applications
4. Meet various application scenarios
5. Suits for high density application with high reliability against shock
6. Consistent with automatic installation process
7. Meets re-flow production process
8. Meets requirement of environment, health and safety

Technical Information

Materials

1. Housing: high temperature thermoplastic (UL 94 V-0)
2. Contact material: copper alloy
3. Contact finish: optional ive gold plating, based plating over nickel

Electrical Performance

1. Current rating : 0.4A
2. Voltage rating : 50V AC
3. Insulation resistance: 500V DC
4. Dielectric withstanding voltage: 250V AC for 1 minute

General Performance

1. Operating Temperature Range: -40°C ~ +105°C

Mechanical Performance

1. Mating force: Max. 1.0N / contact pair
2. Un-mating force: Min. 0.1N / contact pair
3. Durability: 30 mating cycles

Product Variance

Part number Product side Product type Product pitch (mm) Pin count Plating Spec Mounting process Packing Mating height
150035-xx041-3 Plug Vertical 0.5 50 Gold over Ni SMT Tape & Reel 6.0mm
150036-xx041-3 Receptacle Vertical 0.5 50 Gold over Ni SMT Tape & Reel 6.0mm
150055-xx041-3 Plug Vertical 0.5 60/80/100/120/140 Gold over Ni SMT Tape & Reel 20mm
150056-xx041-3 Receptacle Vertical 0.5 60/80/100/120/140 Gold over Ni SMT Tape & Reel 20mm
150061-xx041-3 Plug Vertical 0.5 80 Gold over Ni SMT Tape & Reel 10mm with 150056 series
