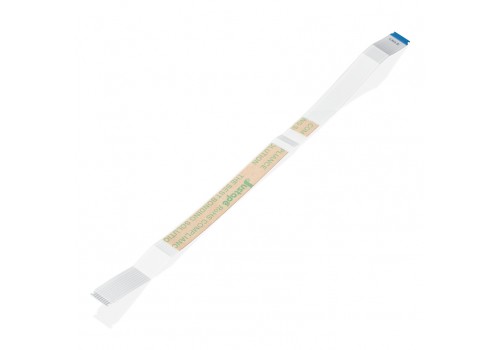

FFC 1.25 Pitch

FFC (Flex Flat Cable) is widely used in many electrical device for cost and labor saving.

Market Application


Electrical device


Features


1. Composed by conductor and insulation and support tape.
2. UL rating for customer operation condition.
3. Available pitch 0.5 &1.0 &1.25mm.
4. 0.32mm conductor available for pitch 0.5 product.
5. Conductor plating: Tin & Au.
6. Variable conductor size for option.
7. Both ROSH and Halogen free design be optional.

Benefits


1. Low cost replacement for FPC (Flexible Printed Cable).
2. Various UL no. for customer application.
3. Connect to PCB by connector or direct soldering
4. More mating tolerance for high pins application
5. Stable contact reliability
6. Fulfill the current rating request.
7. Meet the different restriction from request


Technical Information

Materials


1. Insulation film : PET film coating with flame retardant thermoplastic adhesive
2. Conductor : copper wire
3. Stiffener: PET film coating with thermo- plastic adhesive

General Performance


1. Temperature (operating): -30℃~ 80℃(105℃) by UL rating
2. Storage temperature & humidity (storage): -25℃~ 60℃ / 70%±10%
3. Flame Test(According to UL Sub. 758): VW-1


Electrical Performance


1. Insulation Resistance : DC 500V More than 1,000 MΩ
2. Dielectric strength between conductor : AC 500V

Mechanical Performance


1. Contact Resistance : Max. 50mΩ
2. Folding test : 0-180°folding Min.5cycles
3. Abrasion Resistance: Min 1,000 times (0.6R 600g, 60 times/min)



Product Variance

Conductor thickness Conductor width No. of PIN (N) Total Length (T.L) Pitch (P) Span ( SP) Margin (M) Strip Length (S1/S2) Protector Length (B1/B2) Insert Thickness (T) Conductor Resistance
0.035/0.05/0.1 0.8 4P~30P 40~1000 1.0±0.1 1.25 (N-1) ±0.1 1.25±0.2 2~5 ± 0.5 6~11± 1.0 0.3 ±0.05 0.82/0.53/0.27
