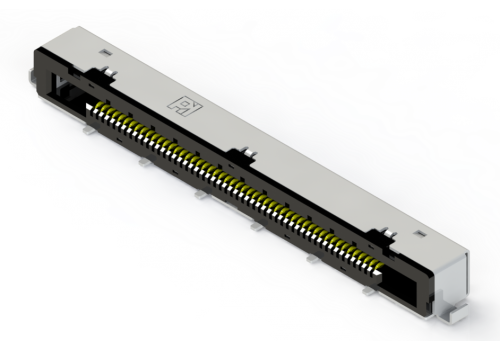

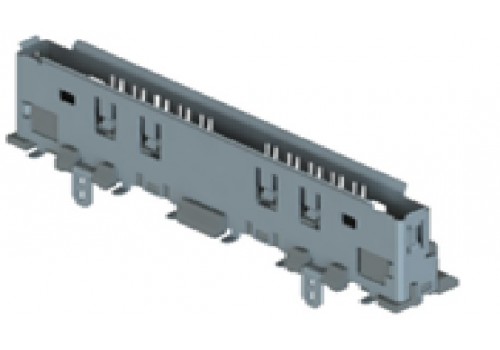

LVDS Socket Connector

LVDS connector supports high speed signal transmission speed(LVDS & HDMI & V-by-One HS/US) for TV、NB、Tablet panel and automotive infotainment system. Connector pitch are 0.5 & 1.0mm. LVDS cable plug can be locked when LVDS socket connector.

  1. Home
  2. Product
  3. LVDS Socket Connector
  4. LVDS Socket Connector

Market Application

Visual Display for Consumer & Automotive Market, such as QLED, OLED, NanoCell and LED-LCD TVs, Ultra HDTV (UHDV), Car Infotainment and Home theaters

Features

1. Mating orientation are RA & VT
2. The reliable terminal design
3. Unique ground design
4. Compatible Lock mechanism for cable plug

Benefits

1. Flexible for customer usage
2. Accommodates LVDS & HDMI & V-by-One HS/US transmission speed
3. Provide good grounding function for high frequency transmission
4. Mated and locked with cable plug to ensure mating function

Technical Information

Materials

1. Housing: high temperature thermoplastic (UL 94 V-0). Black/Beige
2. Contact: copper alloy
3. Shell: stainless steel
4. Ground: copper alloy or stainless steel
5. Contact finish: ive gold plating, over nickel
6. Shell finish: ive gold plating or tin over nickel
7. Ground finish: tin over nickel

Electrical Performance

1. Current rating:
- 1.1 0.5A/pin(0.5mm pitch)
- 1.2 1.0A/pin(1.0mm pitch)
- 1.3 187094 & 187088 &187189 series : 0.3A/pin(0.5mm pitch)
2. Voltage rating: 200V DC/AC
3. Insulation resistance: 100MΩ min.
4. Dielectric withstanding voltage:
- 4.1 Nomal series: 500VAC
- 4.2 187094& 187088 & 187189 series: 250VAC
5. Contact resistance: 40mΩ max.
6. Impedance: 100 Ω ±15%, Rise time 250ps(10%~90%)

General Performance

1. Temperature range: -40°C ~ +80°C
2. Humidity: 40±2°C, 90~95%RH for 96hrs
3. Salt spray: 35±2°C, 5±1% density salt for 48hrs

Mechanical Performance

1. Mating force: Max. 1.96N/pin
2. Un-mating force: Min. 0.25N/pin
3. Durability: 50 cycles(187094 & 187088 & 187189 series: 30cycles)
4. Vibration: 1μs max. by EIA 364-28 Condition I
5. Mechanical shock: 1μs max. by EIA 364-27 Condition A

Product Variance

Part Number Pitch(mm) Pin Count Orientation Mount Type Contact Position Product Height
187053-30091-3 1.0 30 Right Angle Top-Mount Upper Contact 2.3
187114-30091-3 1.0 30 Right Angle Top-Mount Upper Contact 2.3
187034-30091-1 1.0 30 Right Angle Mid-Mount Upper Contact 2.3
187007-30091-1 1.0 30 Right Angle Mid-Mount Lower Contact 2.3
187098-30091#1 1.0 30 Right Angle Mid-Mount Lower Contact 2.3
187145-30091-3 1.0 30 Right Angle Mid-Mount Lower Contact 1.12
187094-30041-1 0.5 30 Right Angle Top-Mount Upper Contact 1.0
187189-30041-3 0.5 30 Right Angle Top-Mount Upper Contact 1.0
187189-40041-3 0.5 40 Right Angle Top-Mount Upper Contact 1.0
187088-40041-1 0.5 40 Right Angle Top-Mount Upper Contact 1.0
187060-41221-1 0.5 41 Right Angle Top-Mount Lower Contact 3.75
187059-51221-1 0.5 51 Right Angle Top-Mount Lower Contact 3.75
187187-51221-3 0.5 51 Right Angle Top-Mount Lower Contact 3.75
187147-51221-3 0.5 51 Right Angle Top-Mount Lower Contact 3.75
187091-51221-1 0.5 51 Vertical Top-Mount NA 4.65
187188-51221-3 0.5 51 Vertical Top-Mount NA 4.65
